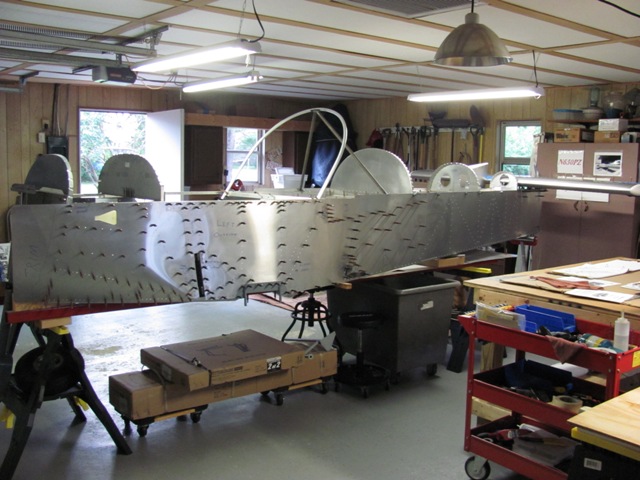

Sep 4. 2012 - Clecoed left side skin and internal support structure back on frame.
JimSnyder27/IMG_4619.JPG

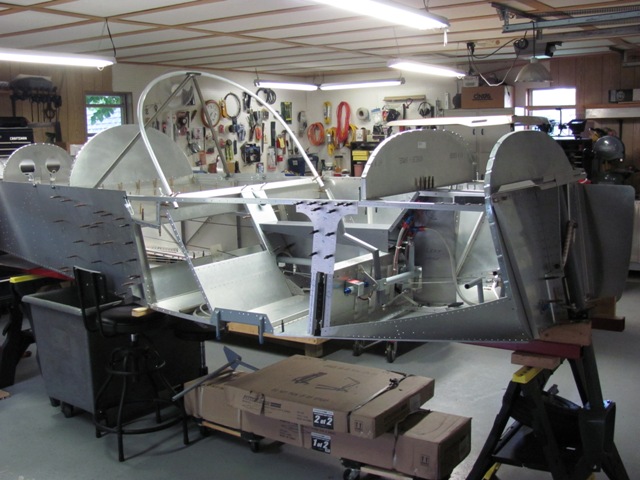

Sep 4, 2012 - Right side left open for viewing.
JimSnyder27/IMG_4620.JPG

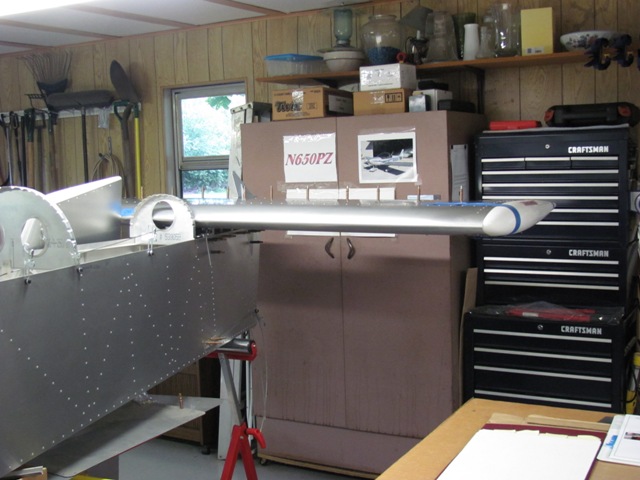

Sep 4, 2012 - Clamped horizontal stabilizer onto tail section.
JimSnyder27/IMG_4621.JPG

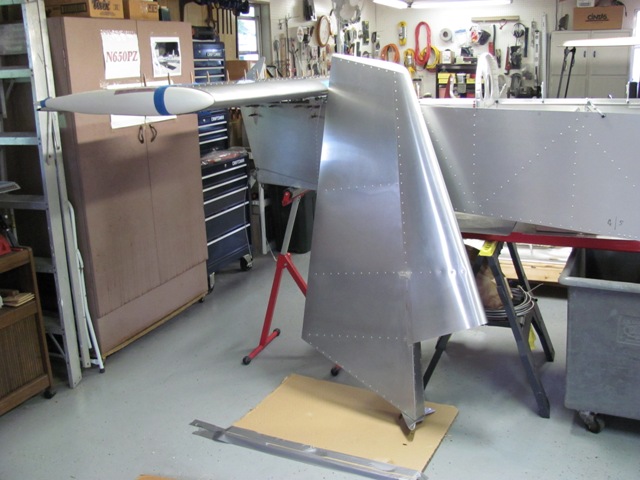

Sep 4, 2012 - Not enough vertical clearance to attach rudder at this point.
JimSnyder27/IMG_4624.JPG

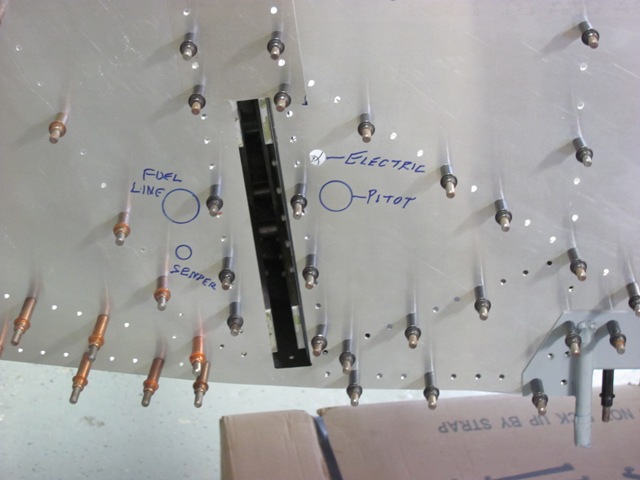

Sep 4, 2012 - Marking approximate locations for various pass-throughs.
JimSnyder27/IMG_4625.JPG

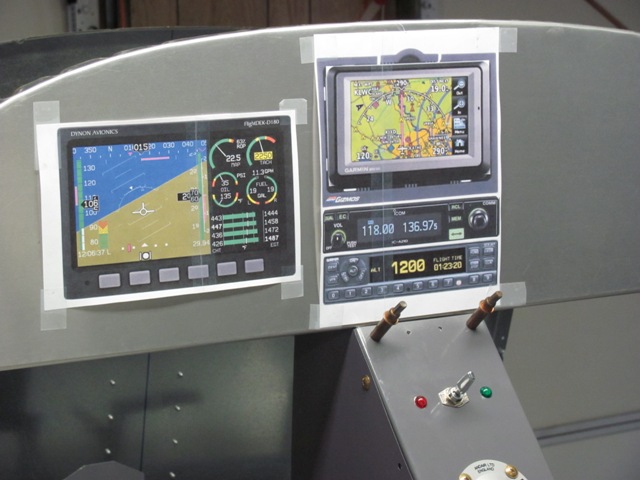

Sep 4, 2012 - Mock up of panel.
JimSnyder27/IMG_4627.JPG
Sep 5, 2012 - Members of EAA Chapter 1311 visited projects tonight.  Tom Mabis, Dave Clark, Gary Reynolds & guest Ron Shearer.
JimSnyder27/IMG_4628.JPG
Sep 5, 2012 - Dave Clark "explaining".
JimSnyder27/IMG_4629.JPG
Sep 5, 2012 - Chapter President Vern Sullenger, and guest Linda Winters.
JimSnyder27/IMG_4640.JPG

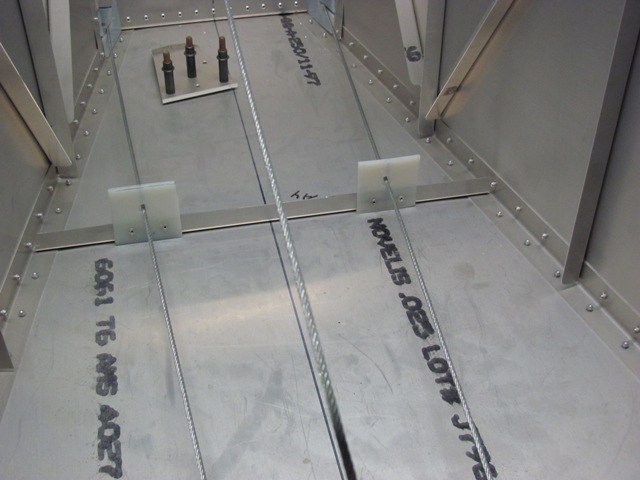

Sep 14, 2012 - Added a nylon fairlead in the rear fuselage to keep the left rudder cable off a bottom L-angle.
JimSnyder27/IMG_4642.JPG

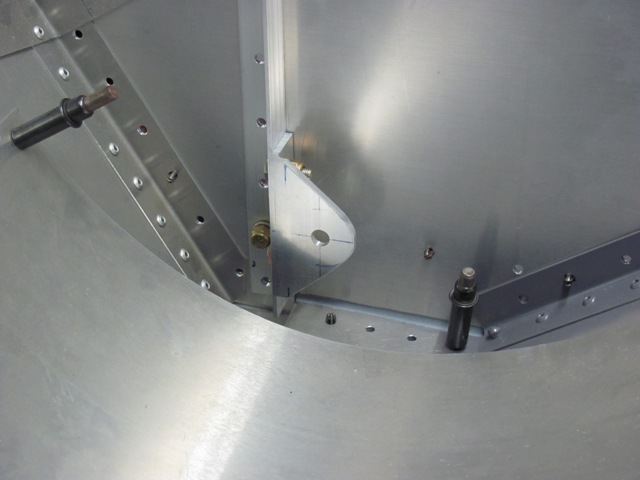

Sep 14, 2012 - Drilled and bolted O/B seat belt brackets to gear uprights.  Needed to put nuts in front to prevent interference with bolts from gear support brackets.
JimSnyder27/IMG_4650.JPG

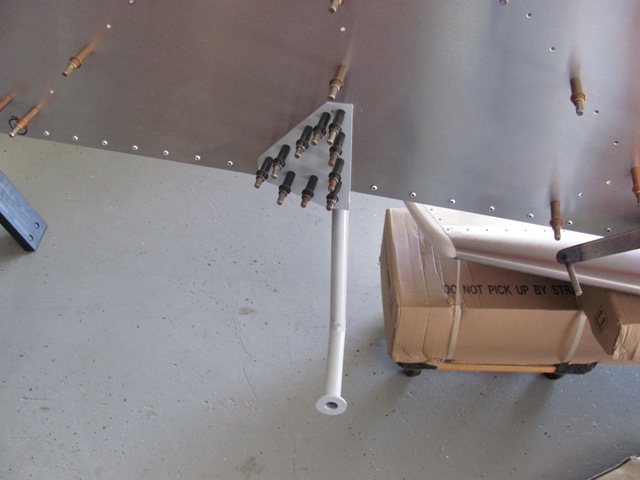

Sep 16, 2012 - Drilled and clecoed steps to fuselage.
JimSnyder27/IMG_4651.JPG

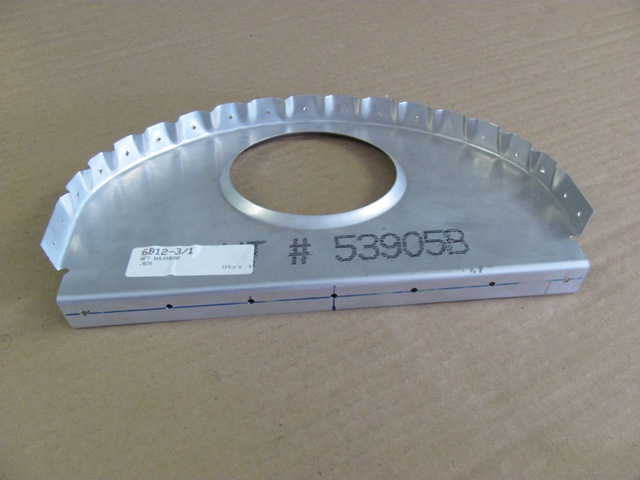

Sep 17, 2012 - Drilling bulkheads I preparation for installing rear top skin.
JimSnyder27/IMG_4656.JPG

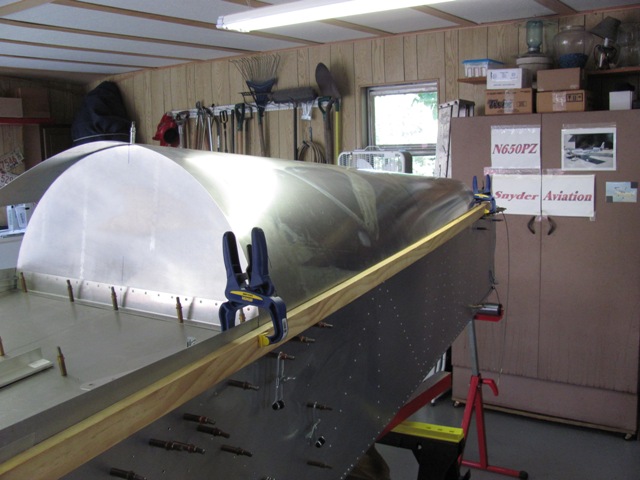

Sep 21, 2012 - Clecoed center line of rear top skin to top of each bulkhead.  Used 1x2 to clamp down top skin prior to drilling into bulkheads.
JimSnyder27/IMG_4659.JPG
Sep 21, 2012 - Suzanne did cleco job while I back drilled (from underneath on the opposite side) through the bulkheads into the skin.  "Let's go, I got cookies to bake!"
JimSnyder27/IMG_4660.JPG

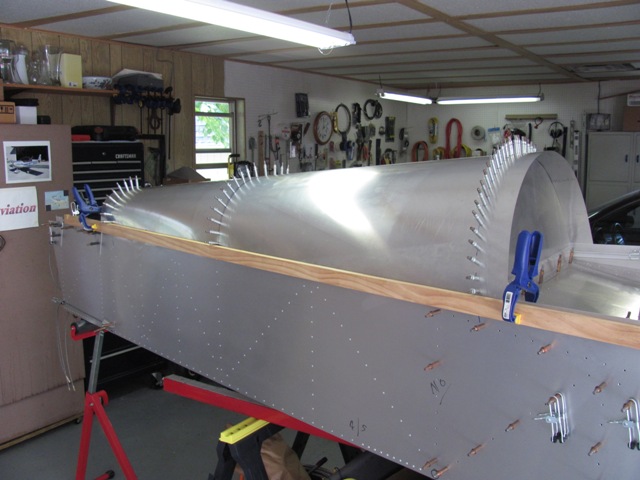

Sep 21, 2012 - performed same operation on the right side (by un-clecoing the left side to gain access to the underneath).
JimSnyder27/IMG_4663.JPG

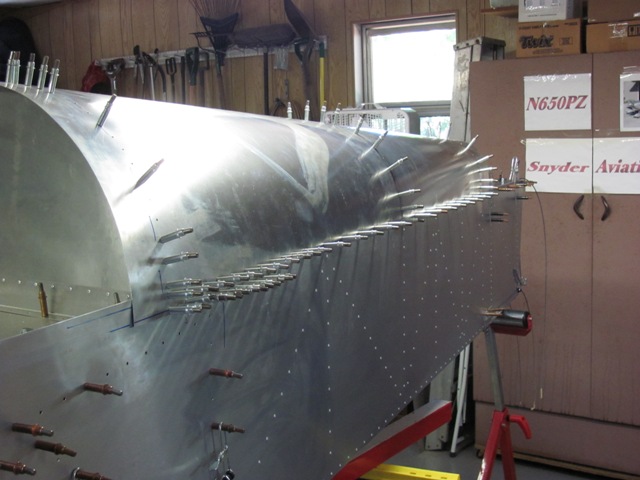

Sep 21, 2012 - Drilled left side edge of top skin into the side skin and top longeron.

JimSnyder27/IMG_4665.JPG

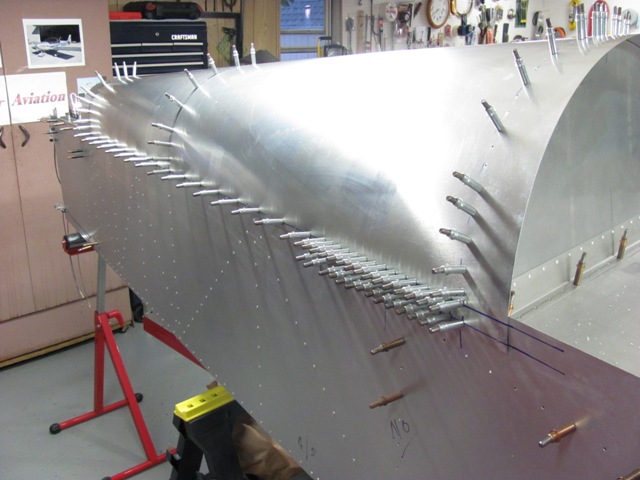

Sep 21, 2012 - Both sides and top all drilled.  Next step is to enlarge to A4 size, then debur.
JimSnyder27/IMG_4669.JPG

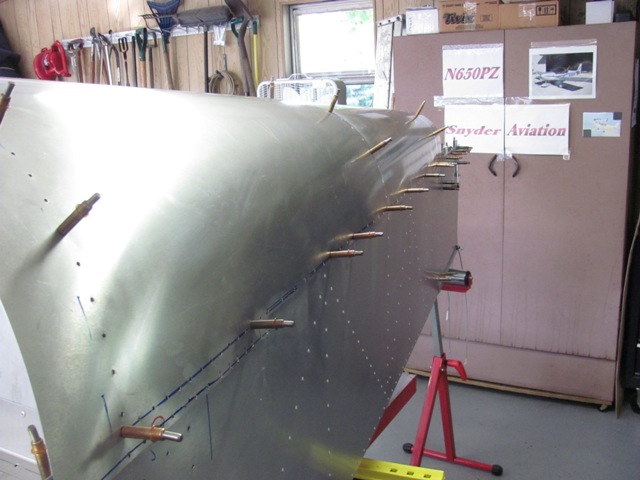

Sep 27, 2012 - Drilled the Rear Top Skin out to A4 size.
JimSnyder27/IMG_4670.JPG

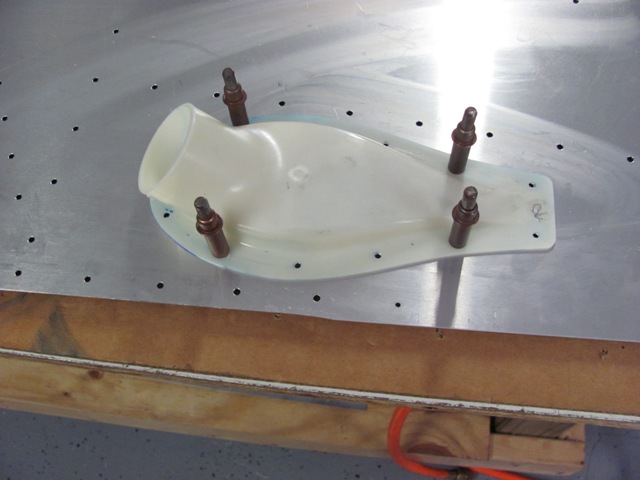

Sep 27, 2012 - Drilled and attached NACA air scoops to front side skins.
JimSnyder27/IMG_4673.JPG

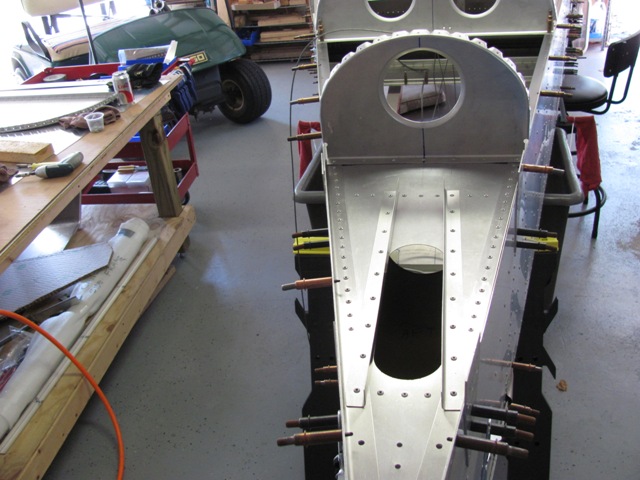

Sep 29, 2012 - Riveted tail cone area.
JimSnyder27/IMG_4675.JPG

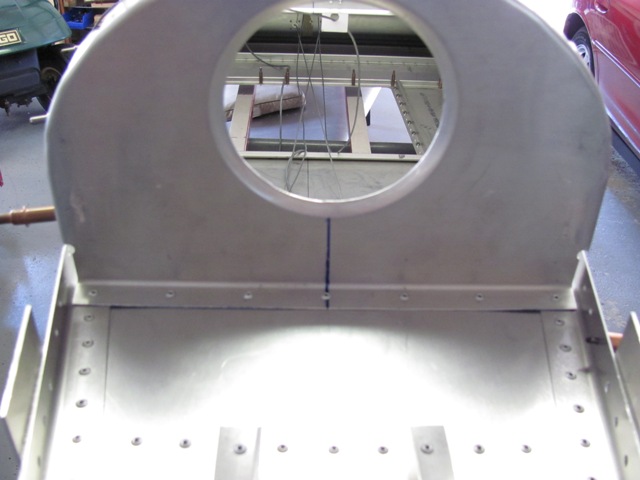

Sep 29, 2012 - Riveted rear bulkhead,
JimSnyder27/IMG_4677.JPG

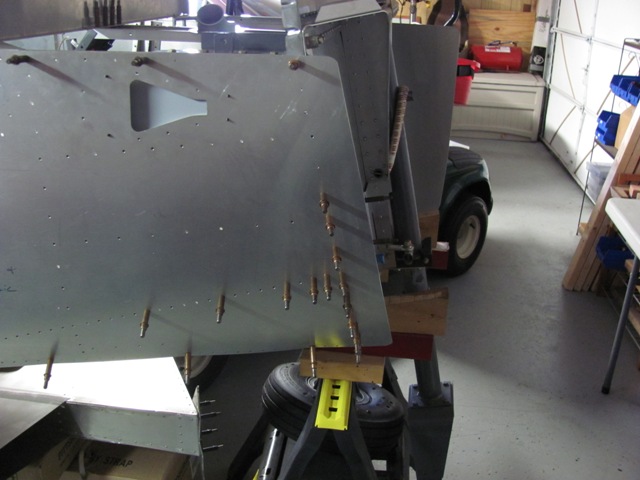

Sep 30, 2012 - Trimmed the front side skins around the firewall, leaving room for attaching the engine cowl.  The background shows skin before trimming.
