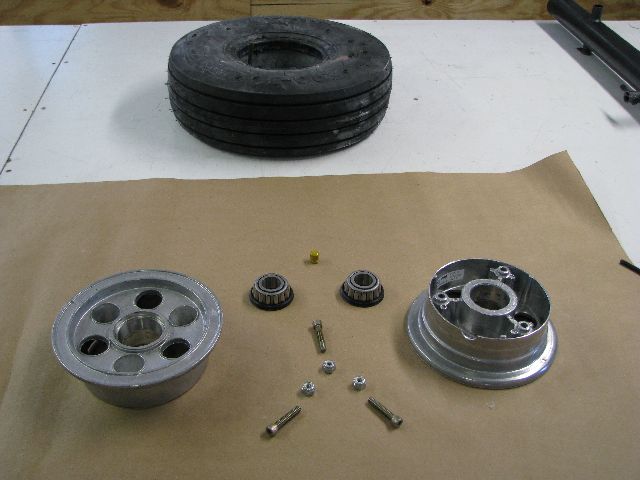

May 6, 2010 - Nose wheel, bearings and bolts.  I have already inserted the inner tube into the tire.
JimSnyder9/IMG_2996.JPG

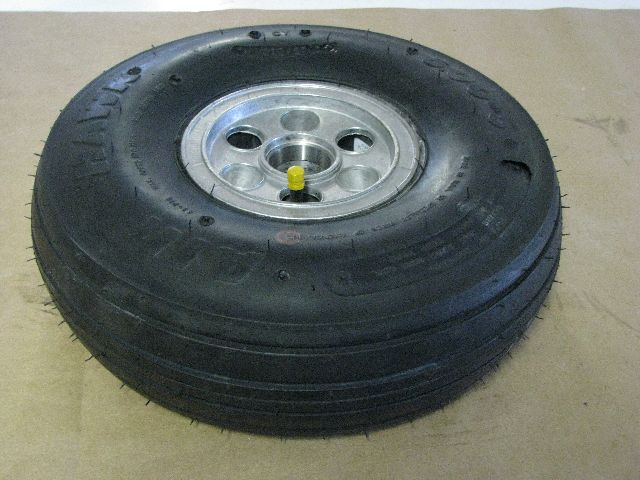

May 6, 2010 - Wheel and tire asembly complete.
JimSnyder9/IMG_2997.JPG

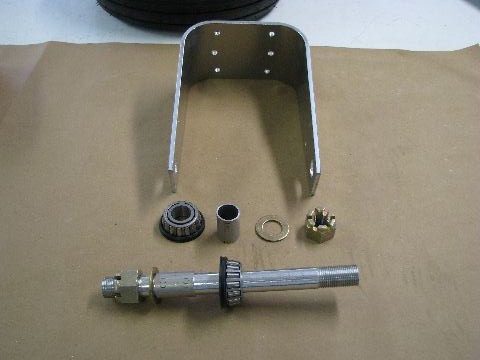

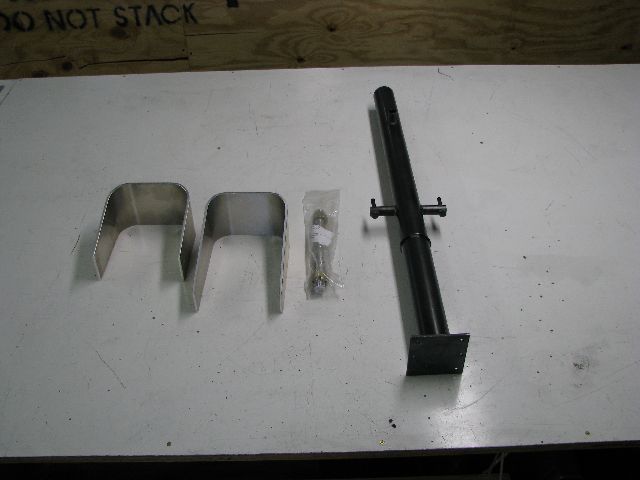

May 7, 2010 - Nose wheel strut, fork, fork doubler, and axle.
JimSnyder9/IMG_3006.JPG

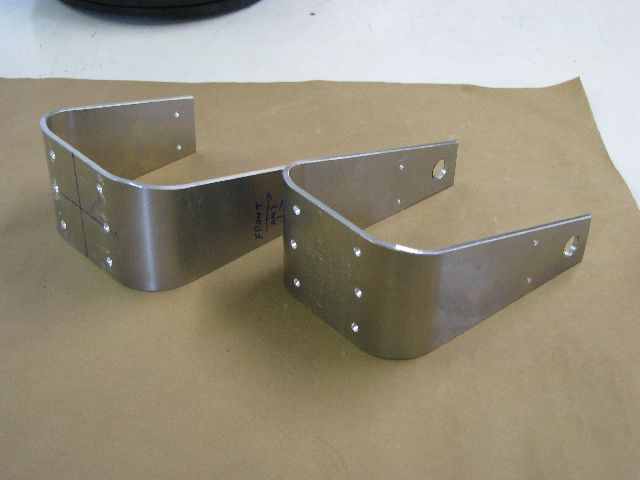

May 7, 2010 - Nose wheel fork and doubler drilled and deburred.
JimSnyder9/IMG_3008.JPG

May 7, 2010 - Nose wheel axle asembly.

JimSnyder9/IMG_3009.JPG

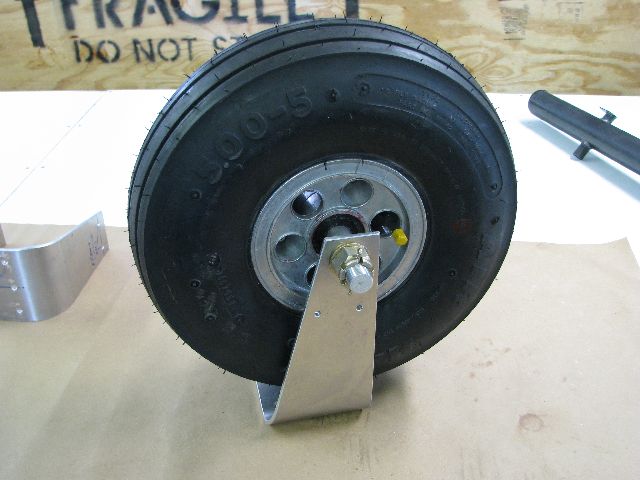

May 7, 2010 - Wheel installed in fork to determine location for drilling of cotter pin holes in axle (for the castle nuts).
JimSnyder9/IMG_3011.JPG

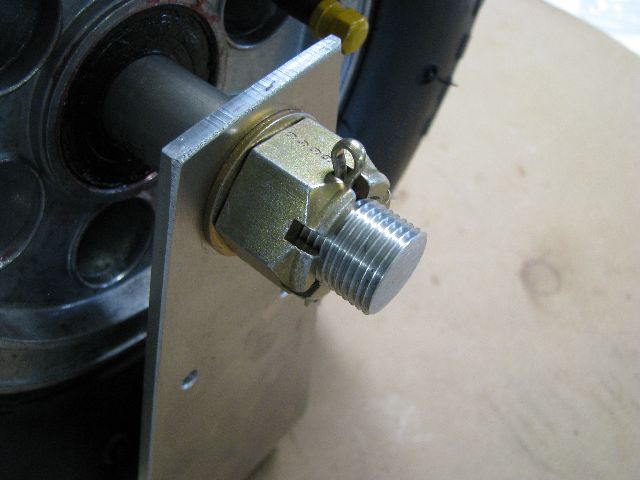

May 7, 2010 - Castle nuts adjusted and pins inserted (temporary).
JimSnyder9/IMG_3012.JPG

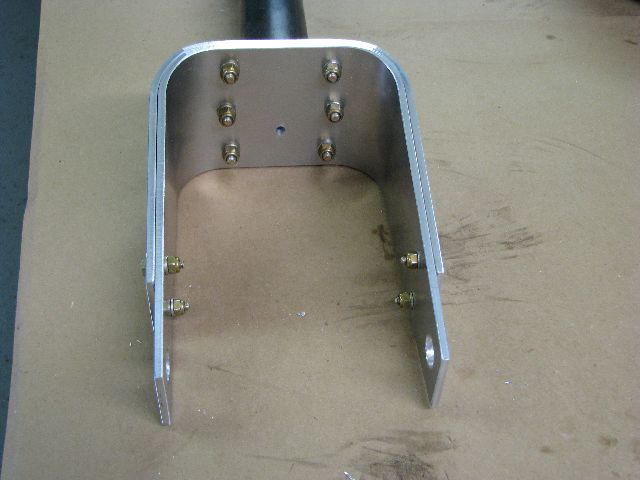

May 8, 2010 - Nose wheel fork, fork doubler, and strut assembled.  A 1/4" drain hole is to help keep moisture from collecting in strut tube.
JimSnyder9/IMG_3018.JPG

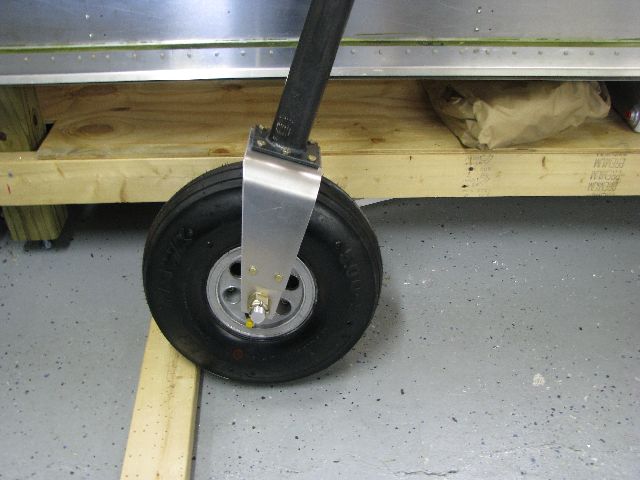

May 8, 2010 - Nose wheel assembly completed.
JimSnyder9/sparkit.jpg

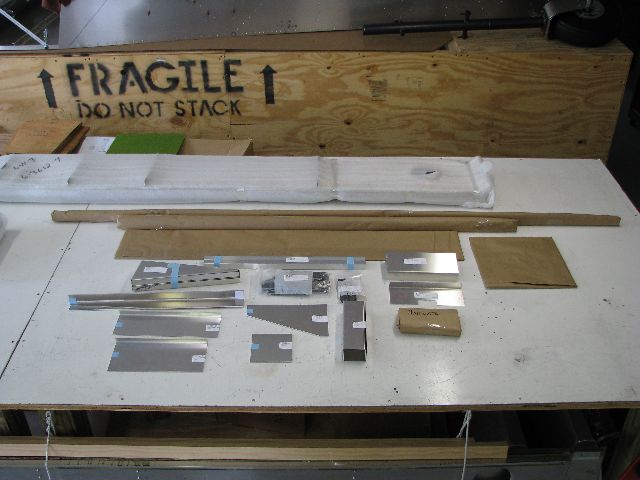

Jim's new spar and upgrade kit received in June 2010.  He will be able to start building again, HOORAY!!!
