JimSnyder18/IMG_4023.JPG

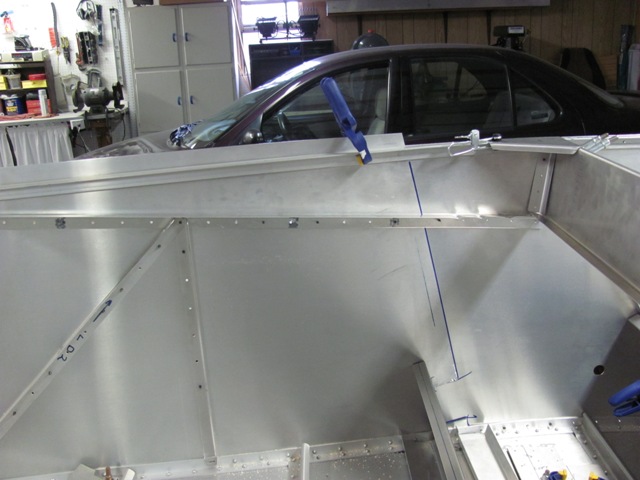

Sep 9, 2011 - Installing L-angles that will support the baggage floor
JimSnyder18/IMG_4024.JPG

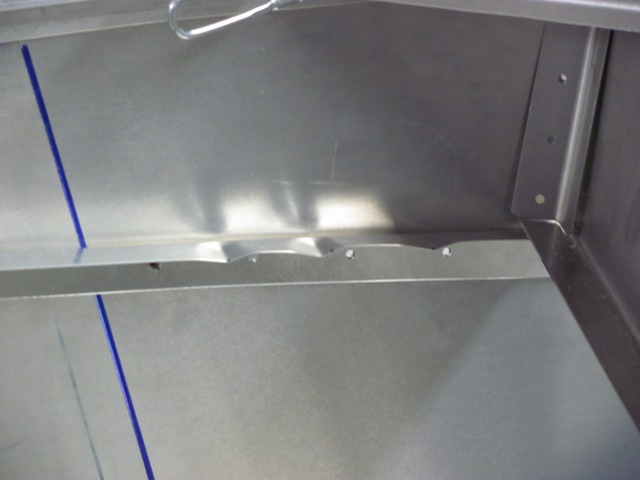

Sep 9, 2011 - Front of L-angle crimped to follow contour of side skin.
JimSnyder18/IMG_4025.JPG

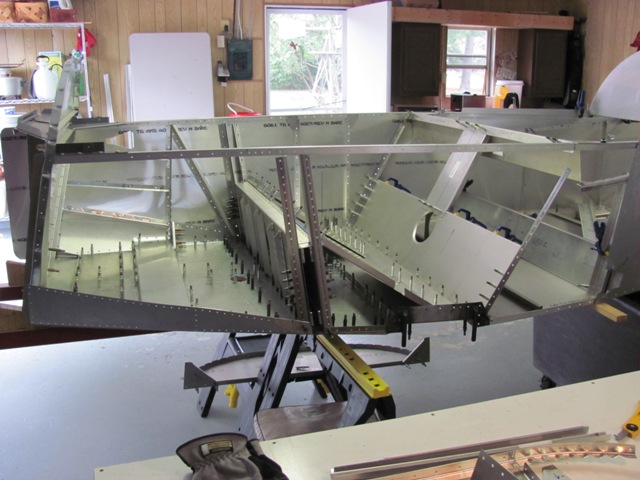

Sep 10, 2011 - Removed left side skin.
JimSnyder18/IMG_4026.JPG

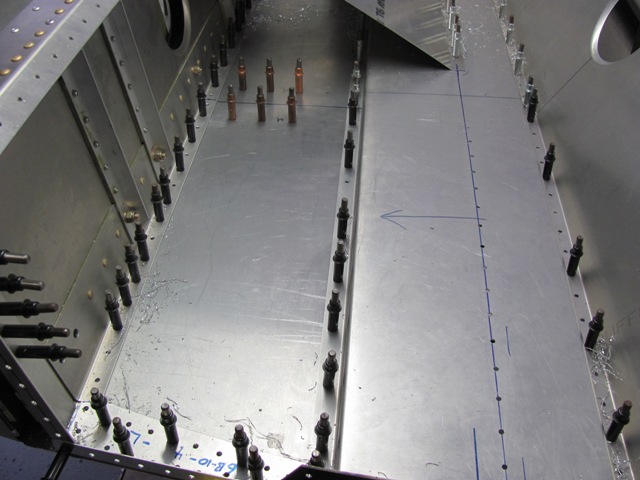

Sep 10, 2011 - Drilled out main gear channel to A5 size.
JimSnyder18/IMG_4027.JPG

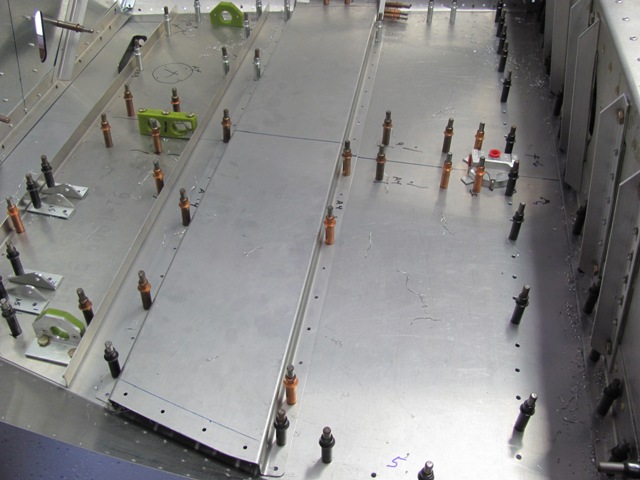

Sep 10, 2011 - Drilled front cockpit are to final rivet size.
JimSnyder18/IMG_4028.JPG

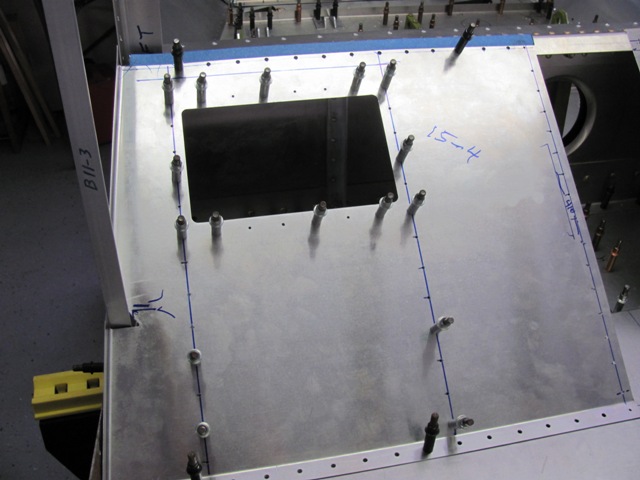

Sep 12, 2011 - Framing the spar access opening in the forward seat pan.
JimSnyder18/IMG_4029.JPG

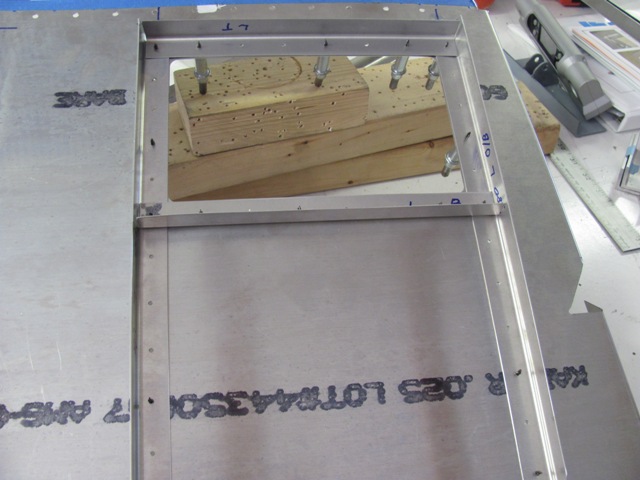

Sep 12, 2011 - View of spar access from bottom.  The long L-angles are heavier angles part of the upgrade package.
JimSnyder18/IMG_4032.JPG

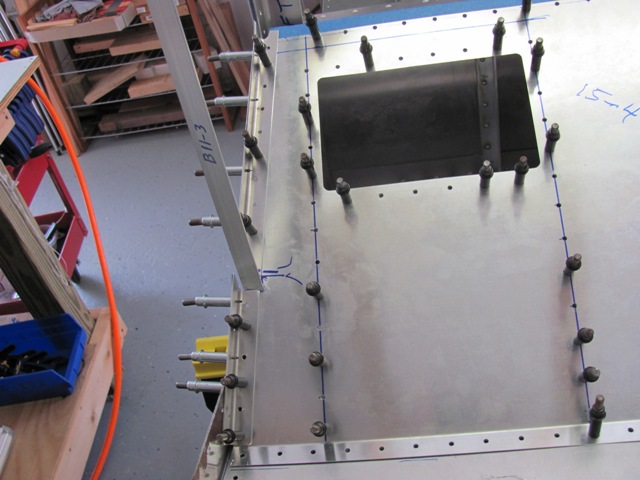

Sep 12, 2011 - Added new .040" angles to seat pan side flange.
JimSnyder18/IMG_4034.JPG

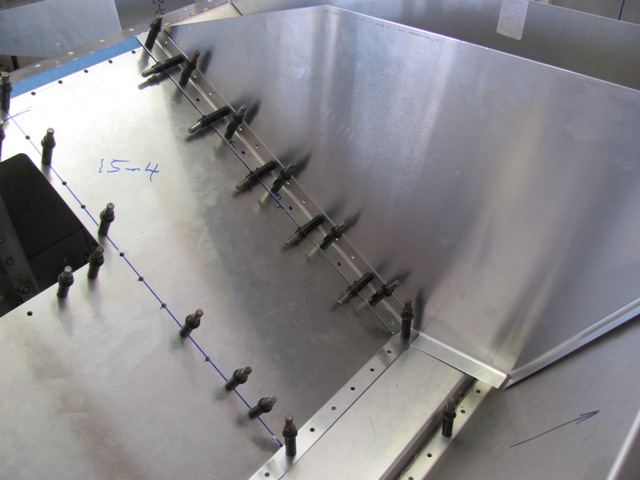

Sep 12, 2011 - Added new .040" angles to seat pan joint with center arm rest console.
JimSnyder18/IMG_4035.JPG

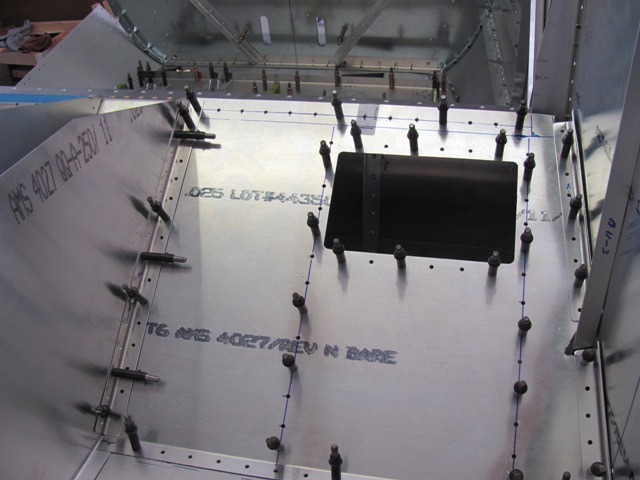

Sep 13, 2011 - Add new reinforcing angles to right side seat pan.
JimSnyder18/IMG_4036.JPG

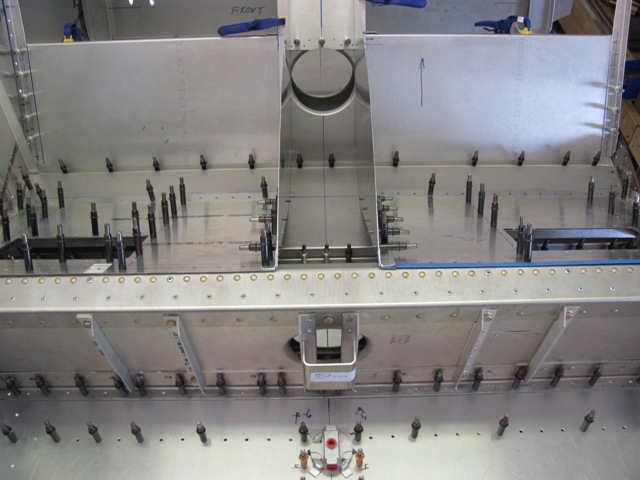

Sep 13, 2011 - View (looking back) of center spar, forward seat pans, and back seat support.
JimSnyder18/IMG_4037.JPG

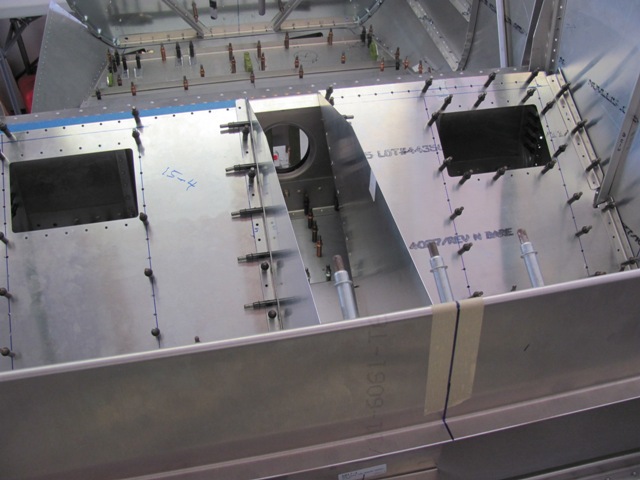

Sep 13, 2011 - Looking forward from back seat support at forward seat pans.
JimSnyder18/IMG_4038.JPG

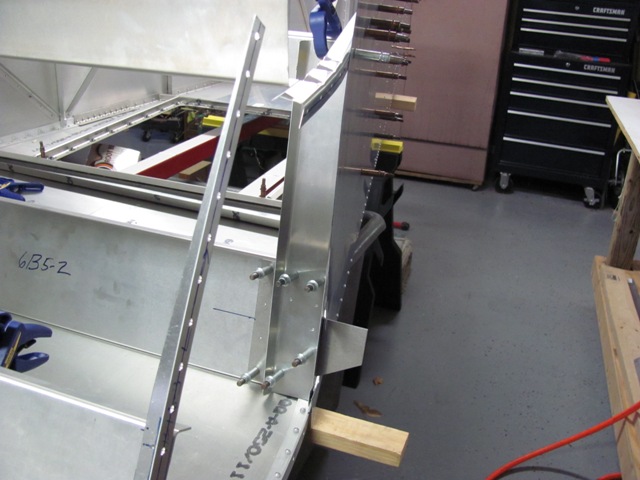

Sep 27, 2011 - Drilled 6B5-6 left rear support upright channel to rear spar attachment.
JimSnyder18/IMG_4039.JPG

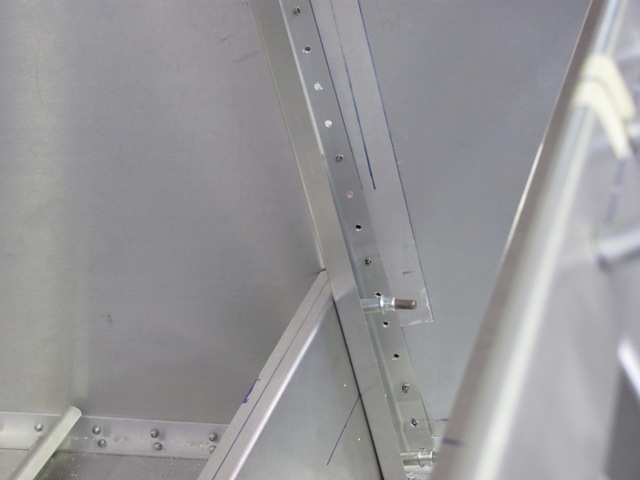

Sep 29, 2011 - Drill 6B5-6 Upright Channel to left side skin.
JimSnyder18/IMG_4040.JPG

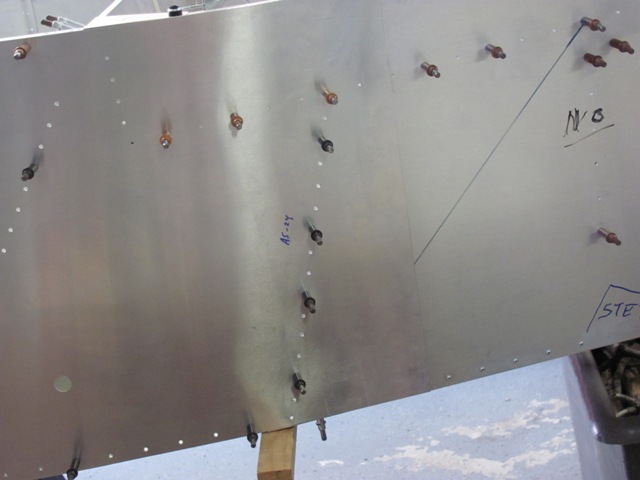

Sep 29, 2011 - View of rivet line for 6B5-6 Upright Channel.  Note forward skin needs to be trimmed back along this line.
JimSnyder18/IMG_4041.JPG
Sep 29, 2011 - Drilled forward seat panel O/B L-angles to left side skin.
JimSnyder18/IMG_4042.JPG

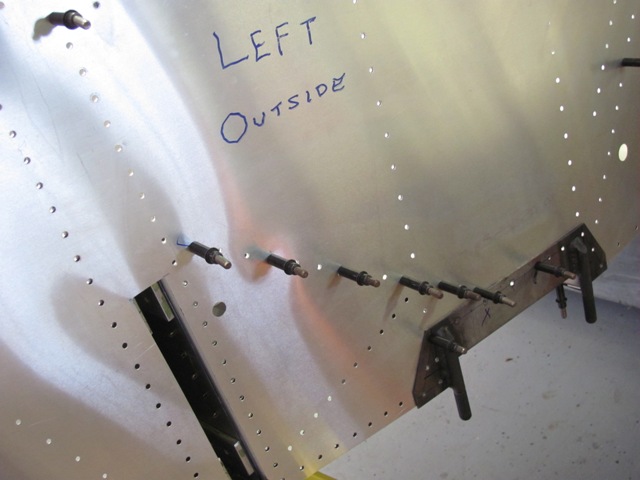

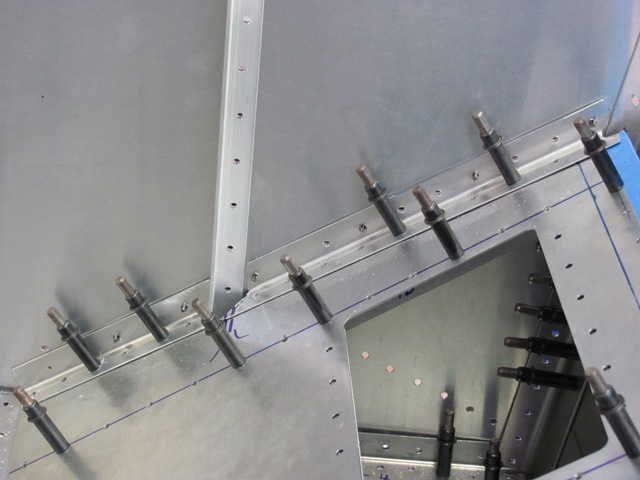

Sep 29, 2011 - View of rivet line for  forward seat panel O/B L-angles.
JimSnyder18/IMG_4043.JPG

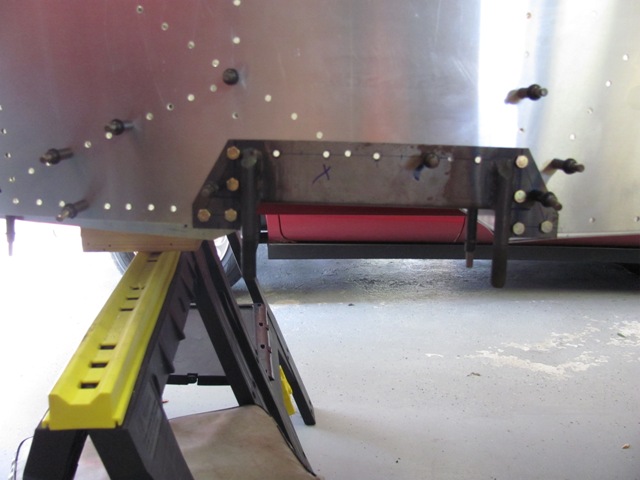

Sep 29, 2011 - Drilled out AN-3 bolt holes in left Main Gear Bracket.

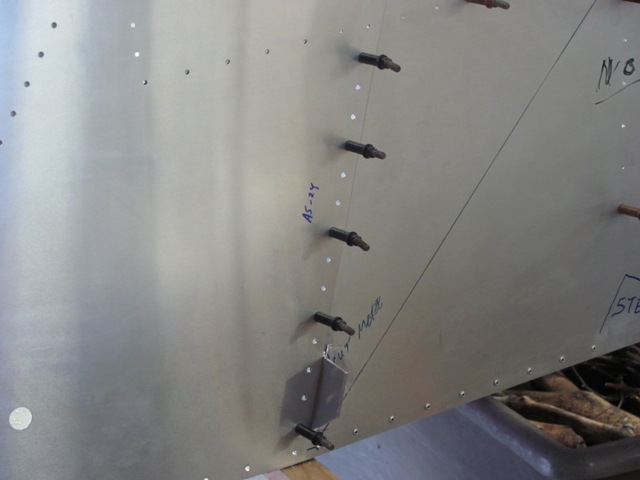

JimSnyder18/IMG_4044.JPG
Sep 29, 2011 - Trimmed off excess from rear of left forward skin.
